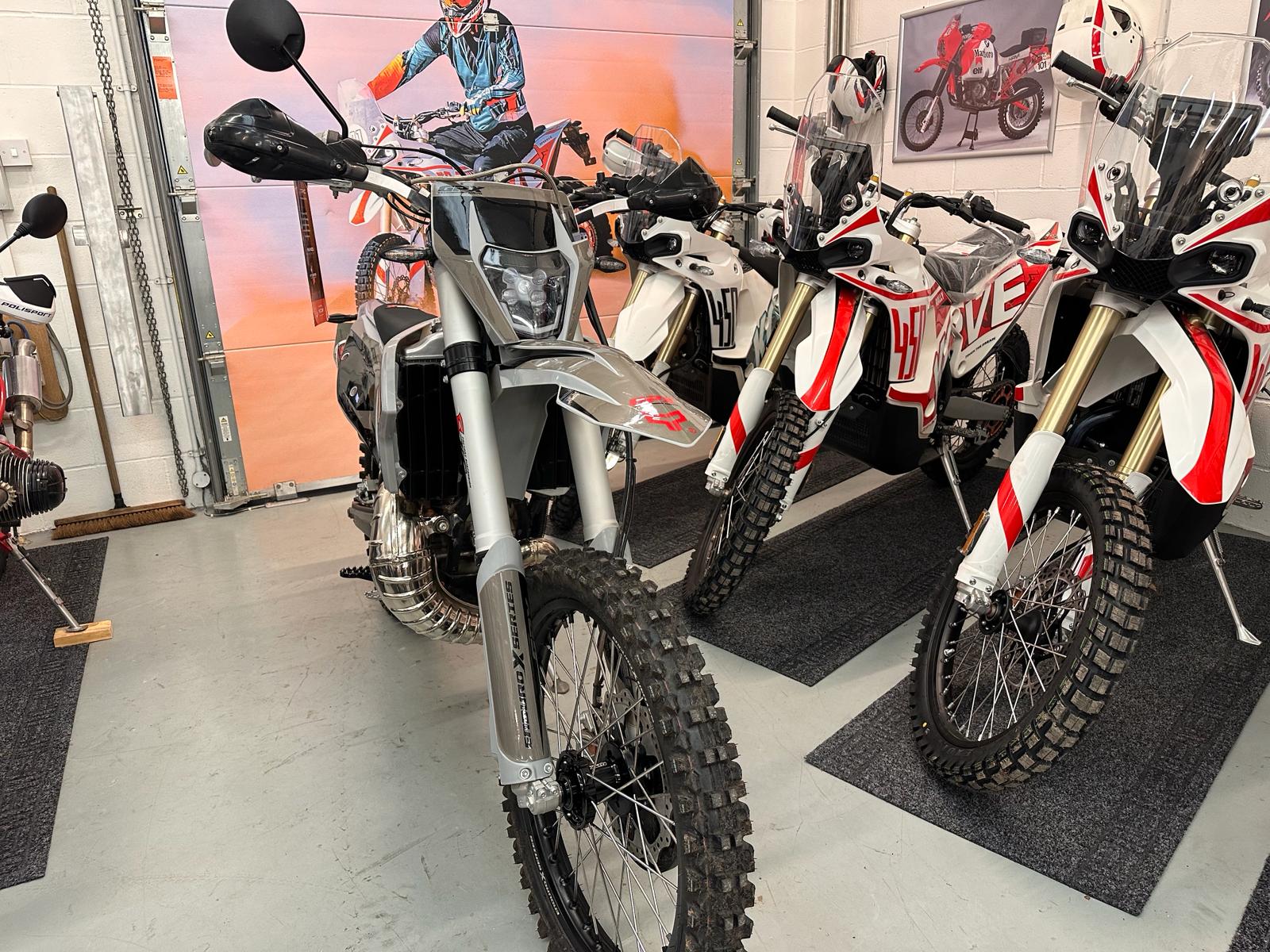

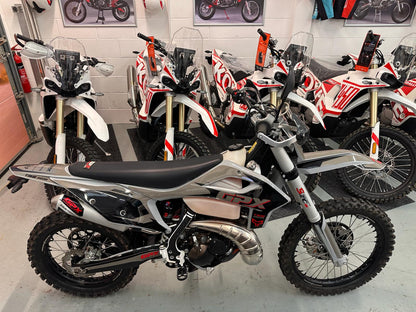

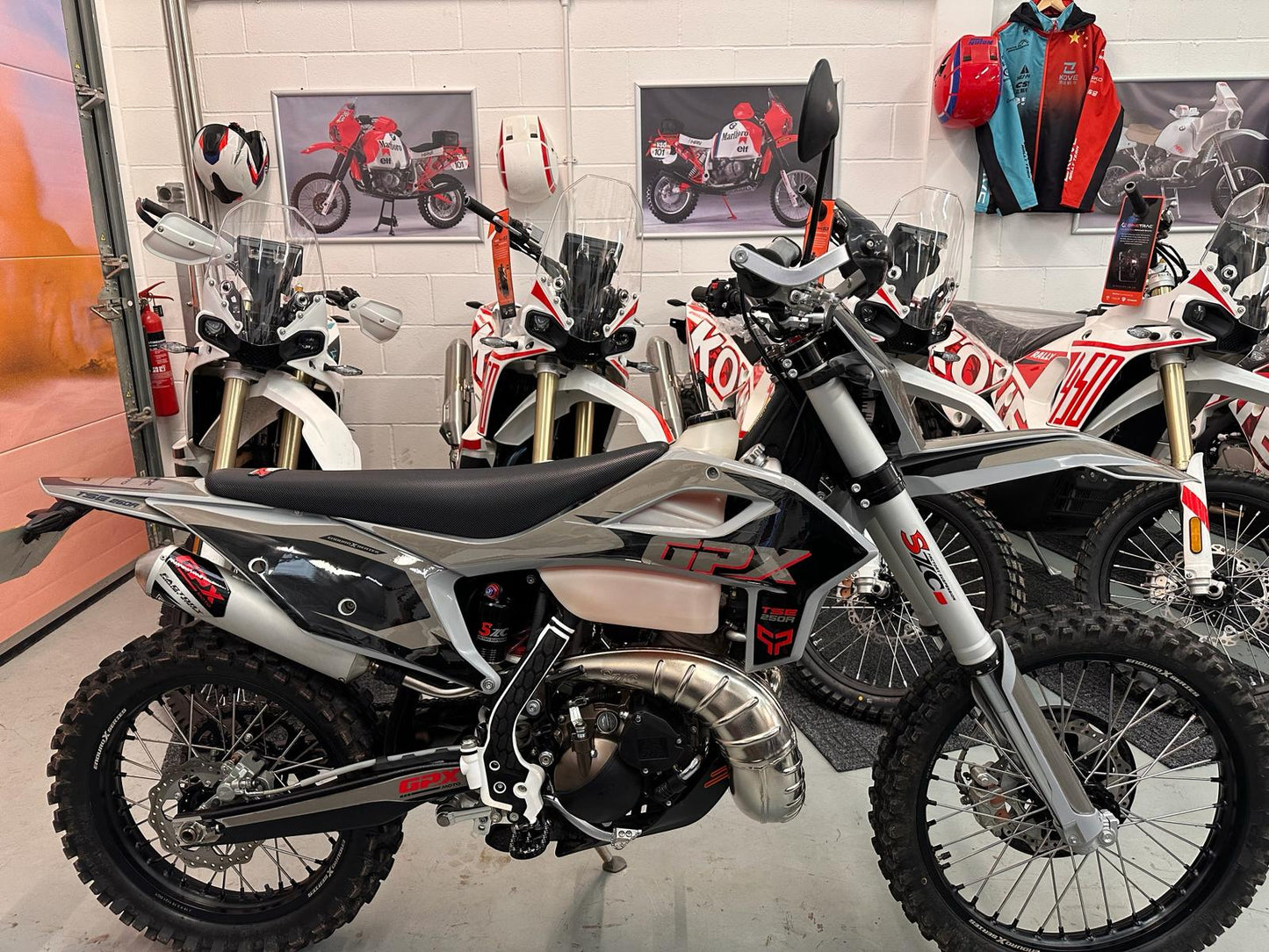

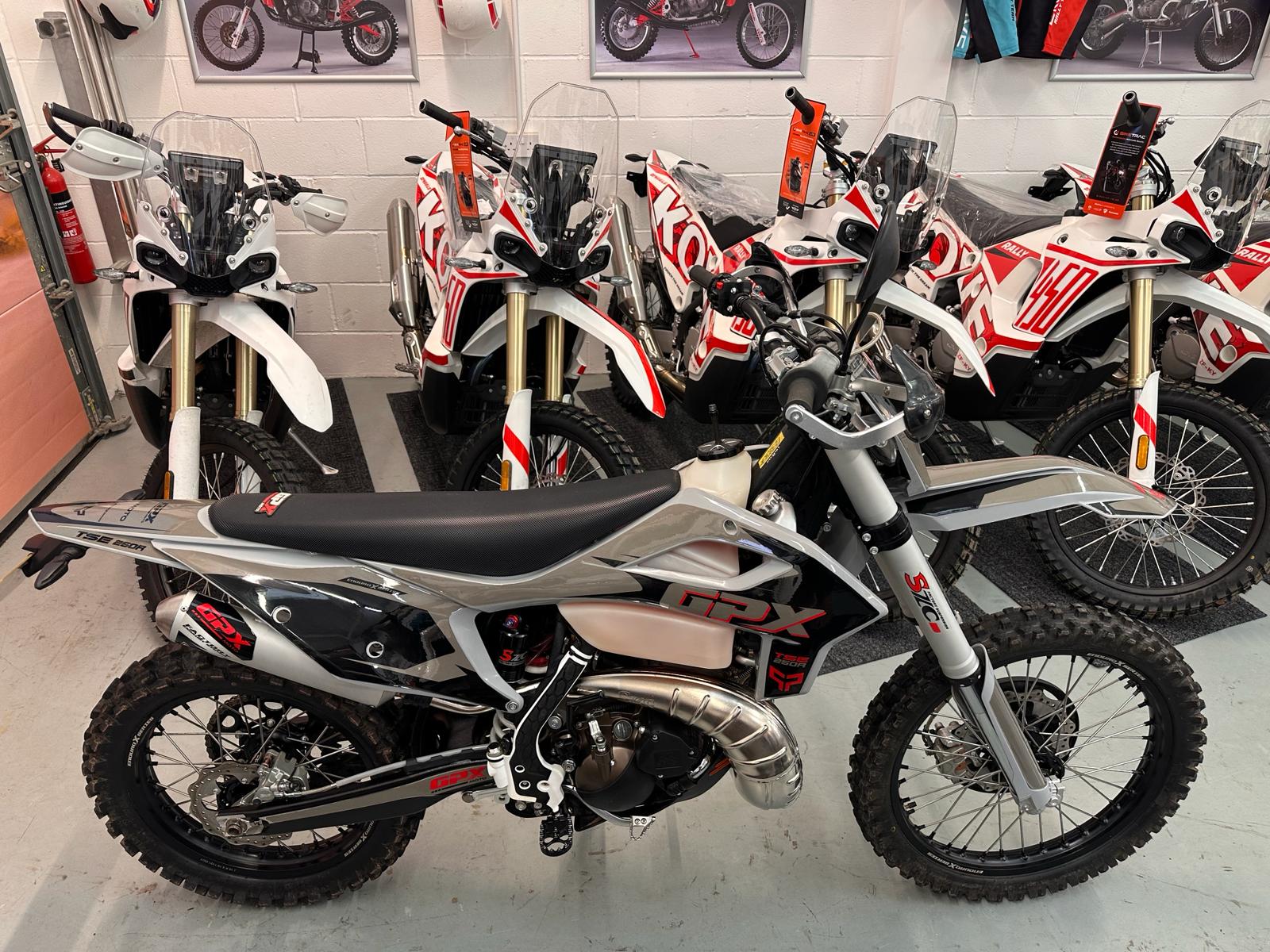

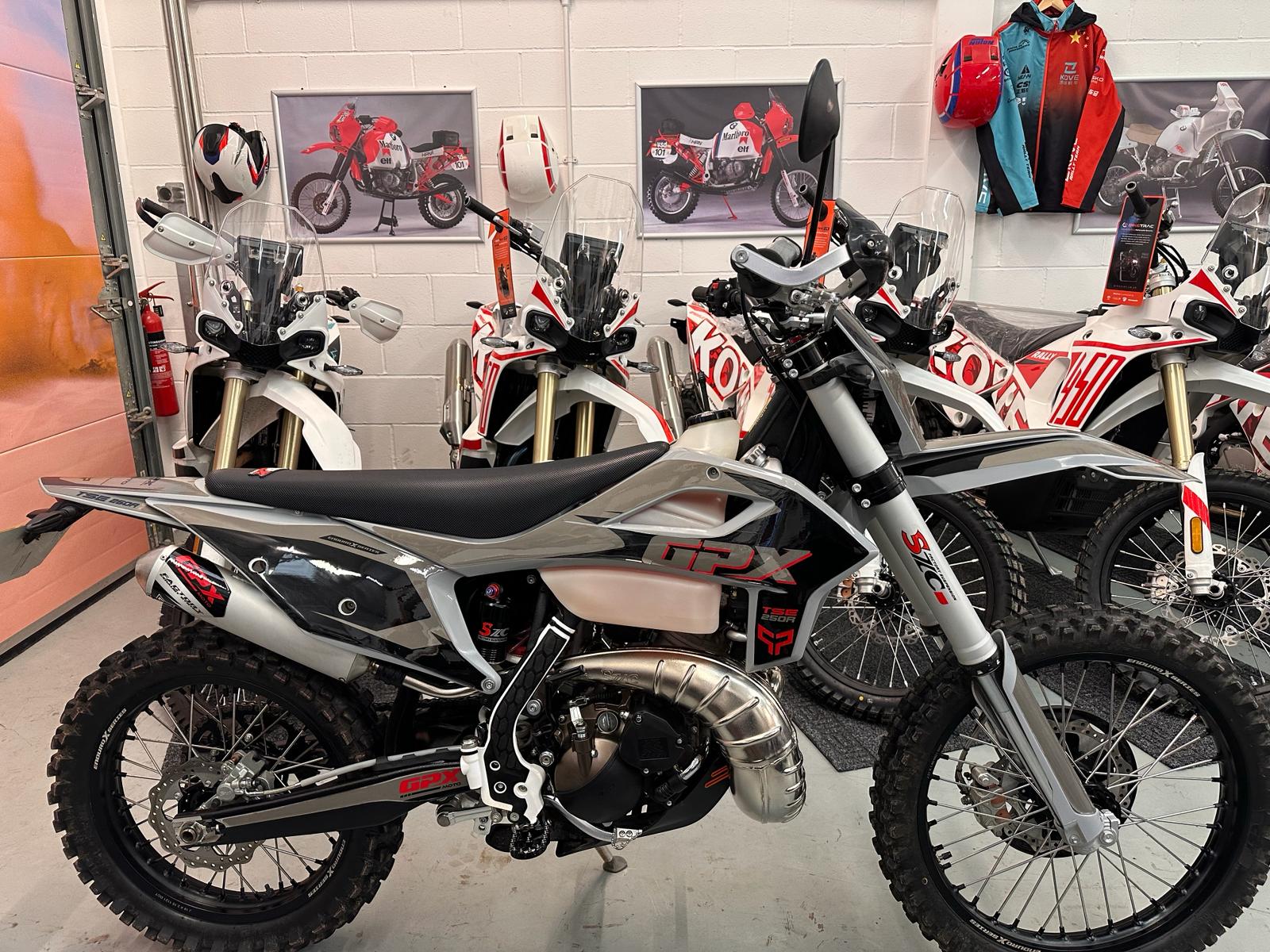

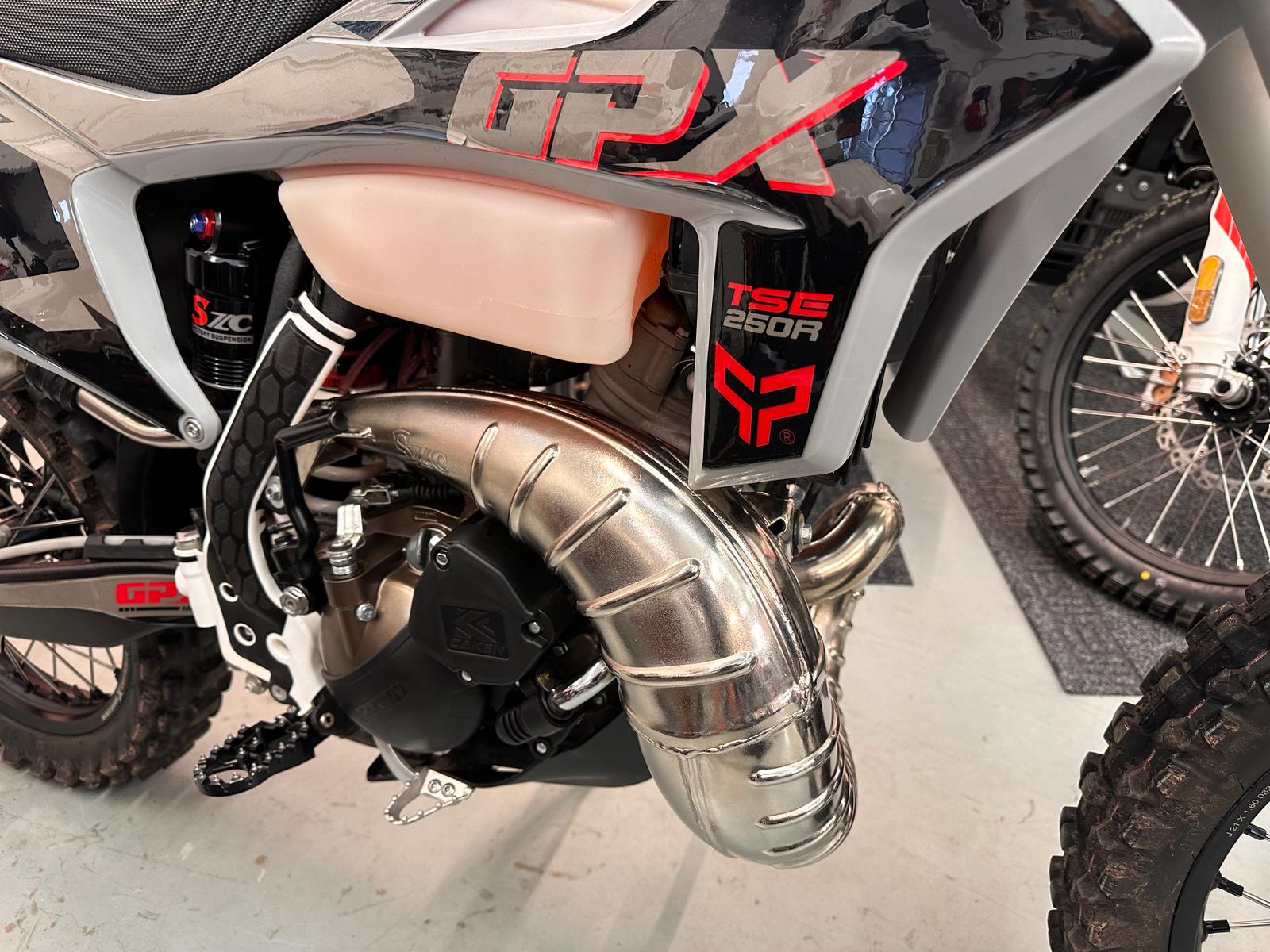

TSE 250R (224cc) 2022

This is a beautiful bike with quality components: billet hubs and footpegs, fully adjustable suspension, hydraulic disc brakes, full instrumentation, a street legal kit, handguards and more. GPX certainly packs a big package into a small price tag. From our testing, this bike is every bit as reliable as a big name brand and the price just can’t be beat. It has electric start with a backup kickstarter as well.

Save £1500 off a price new on !

1 mature owner from new.

450 careful miles on gentle green lanes and B roads.

Read the reviews, these bikes are great and £££ less expensive than the KTMs and Jap bikes.

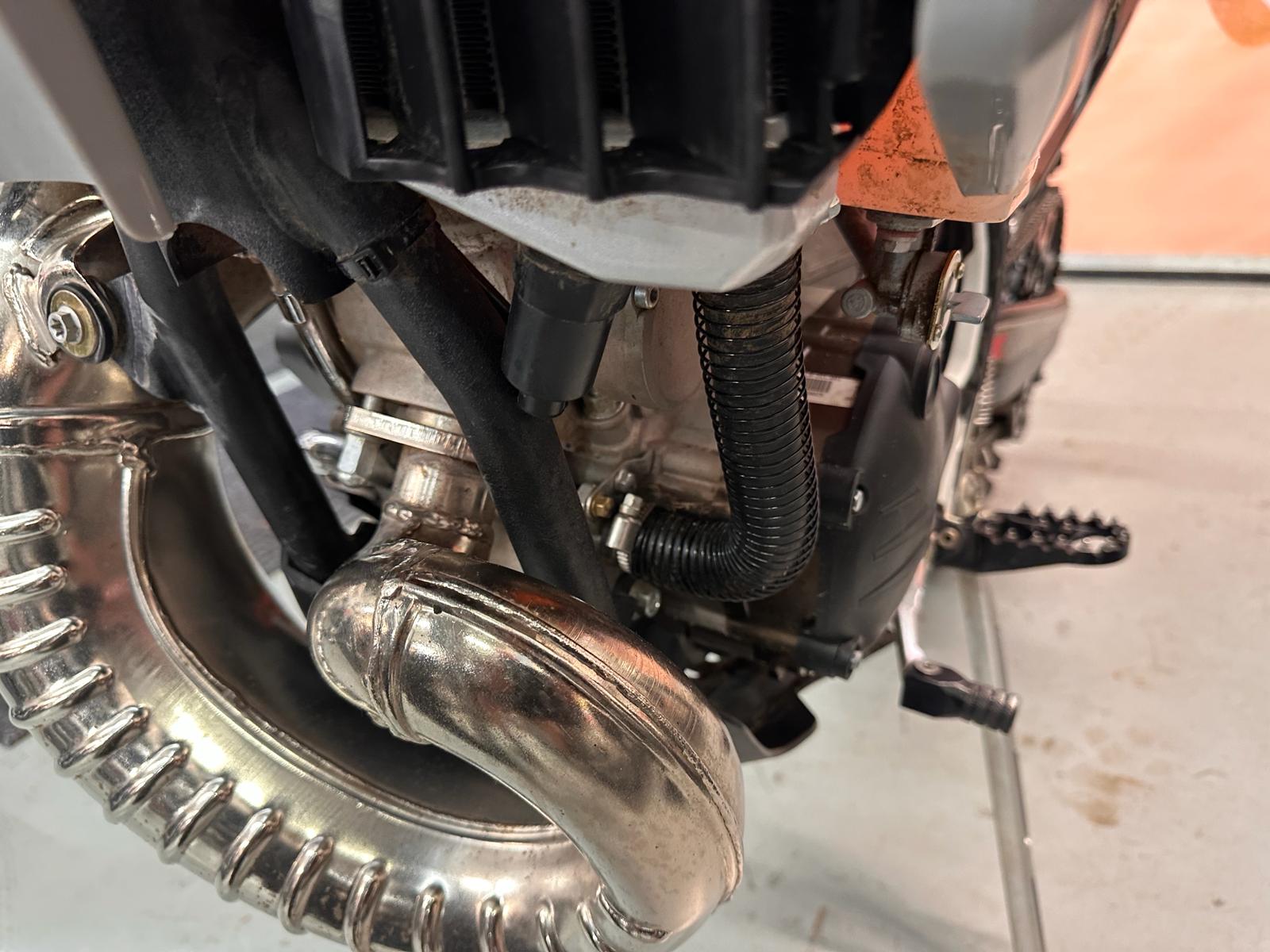

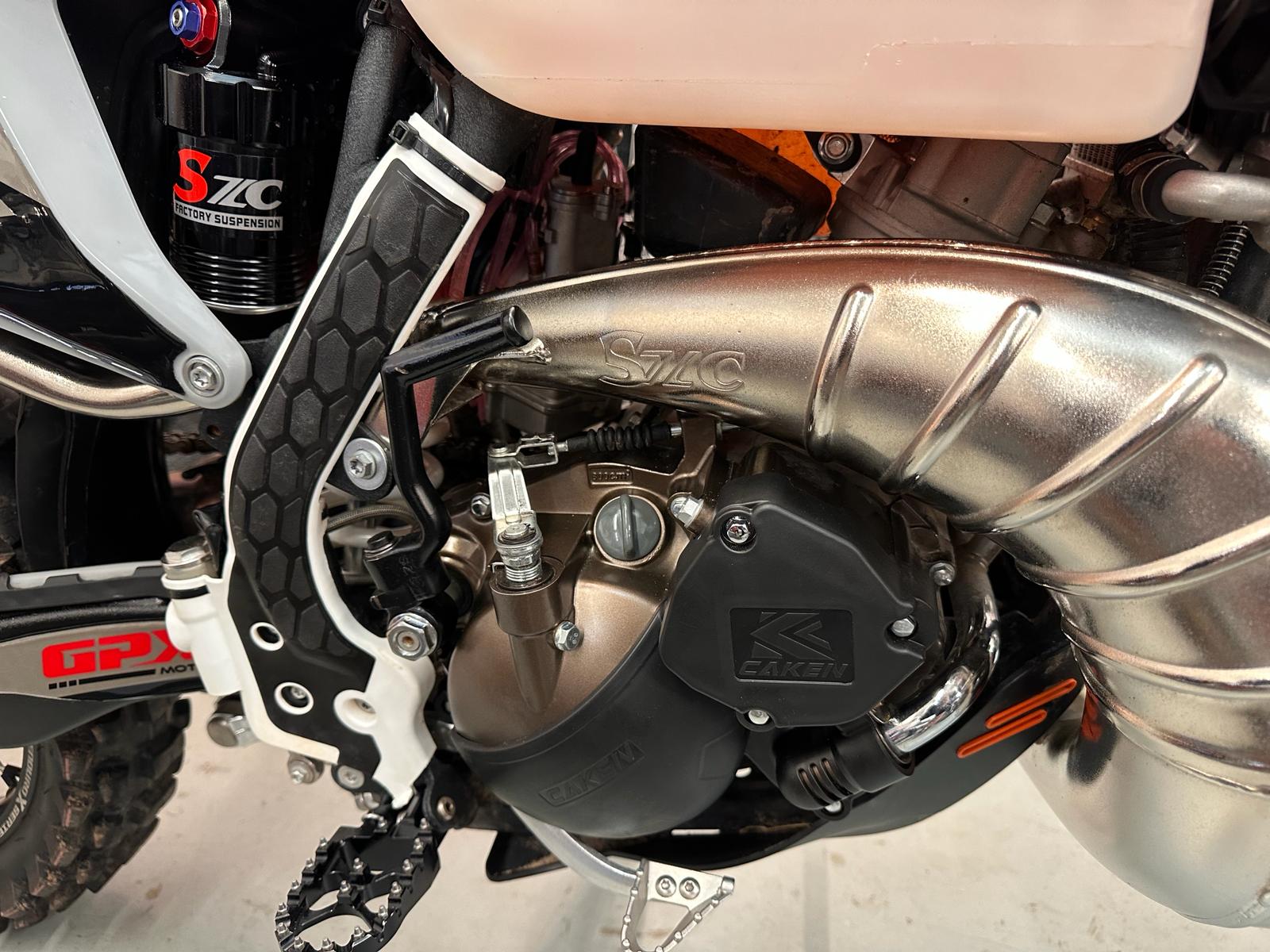

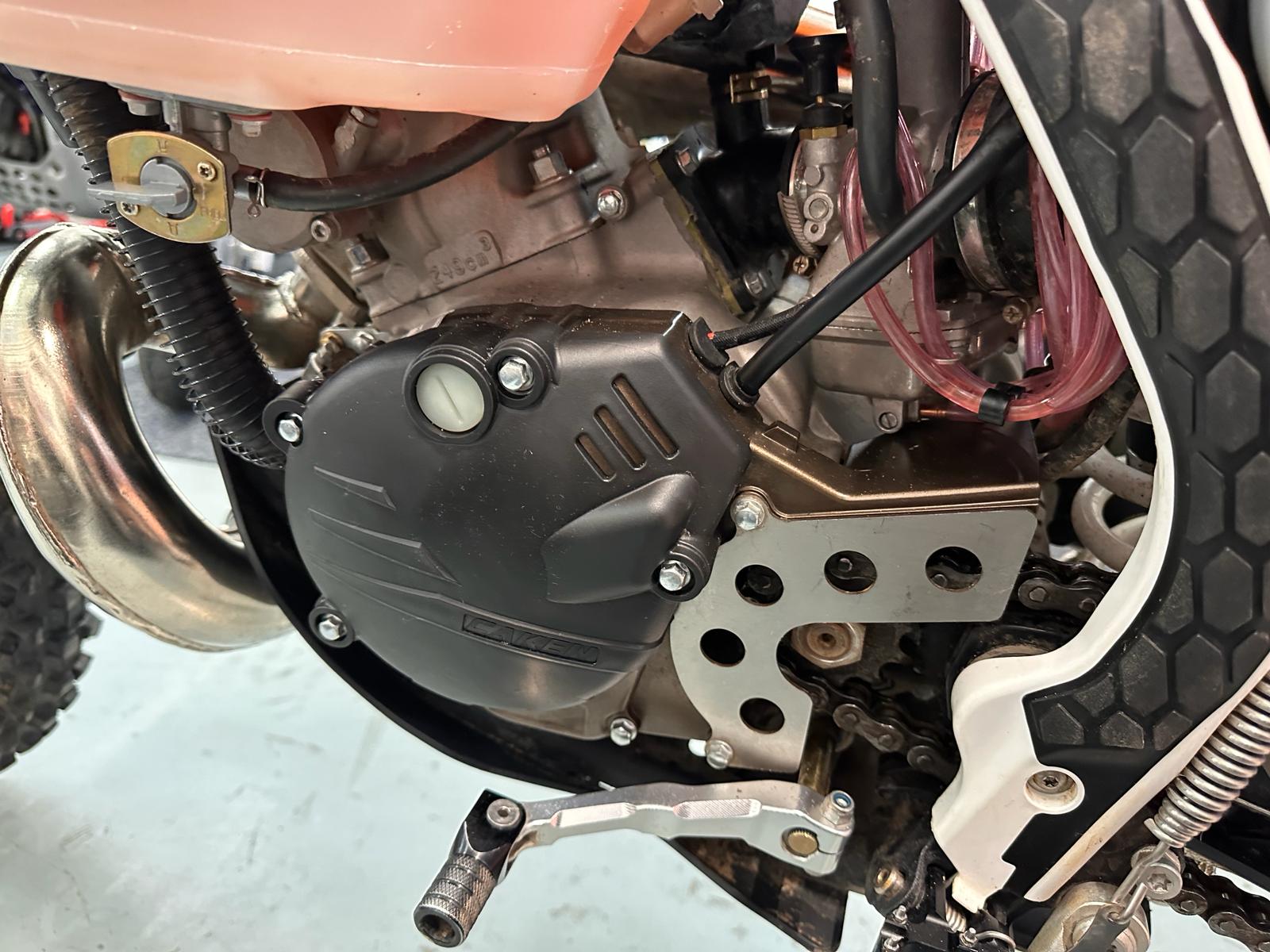

Engine 224cc 2-stroke based upon WR250 engine and manufactured under Yamaha licence.

Bore and Stroke 66.8 mm Bore, 64 mm Stroke
Compression Ratio6.5:1
6 speed gearbox with traditional wet clutch
12v Electric start with starter placement under engine and with direct attachment to flywheel (No maintenance with no gears to wear)
Kick start back up
Electronic power valve
12v electrical system and carburation

Induction- Force case reed valve with new race carb for 2022
Ignition- CDI (New Race cdi for 2022 models)

CHASSIS AND DIMENSIONS
Rake27.10* (Caster angle)
Trail110mm (4.3 inches)
Wheelbase58.3 inches
Seat height37 inches
111kg with oils as well as front and rear light fitted . With indicators and mirrors supplied the weight rises by 2kg.

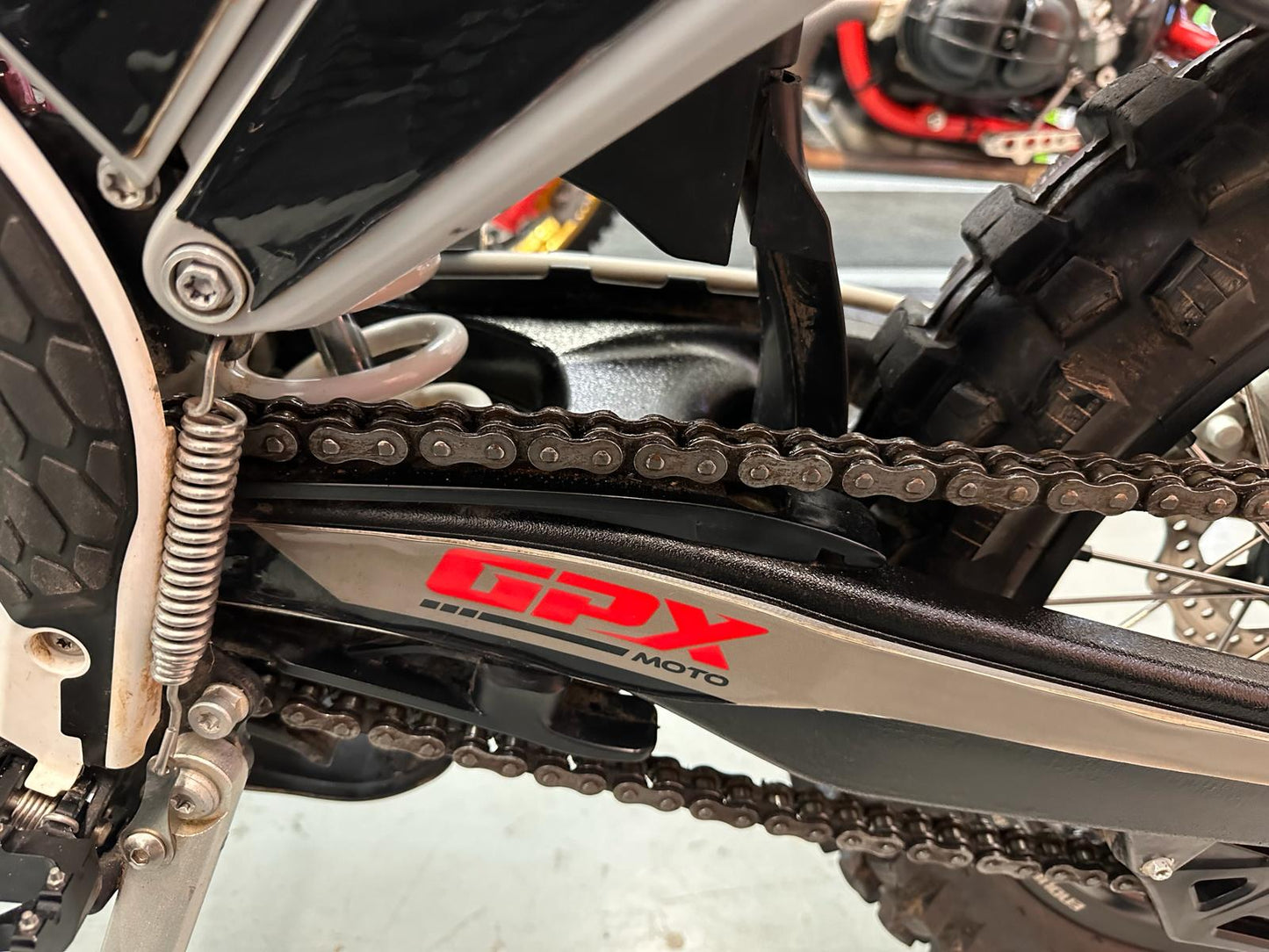

Chain O-ring 520
​

Fuel Capacity New 2.5 US Gallon tank for 2022. 9.46 litres.
Ground Clearance 13 inches
SUSPENSION

Front suspension. 12.2 inch travel. Comprising of quality high performance Telescopic, open cartridge type units with adjustable compression and rebound. Seals , dust seal and range of springs available (after market).

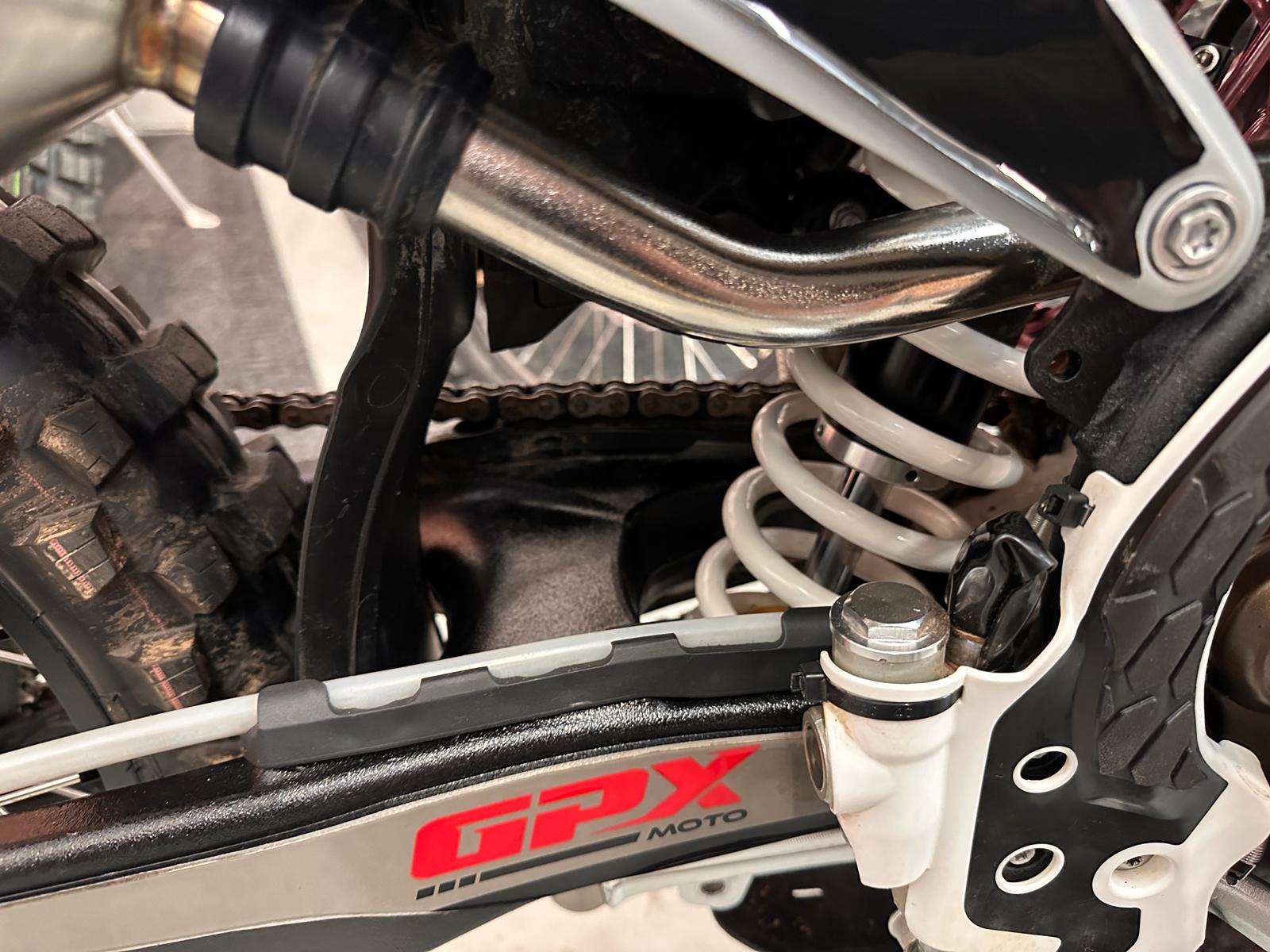

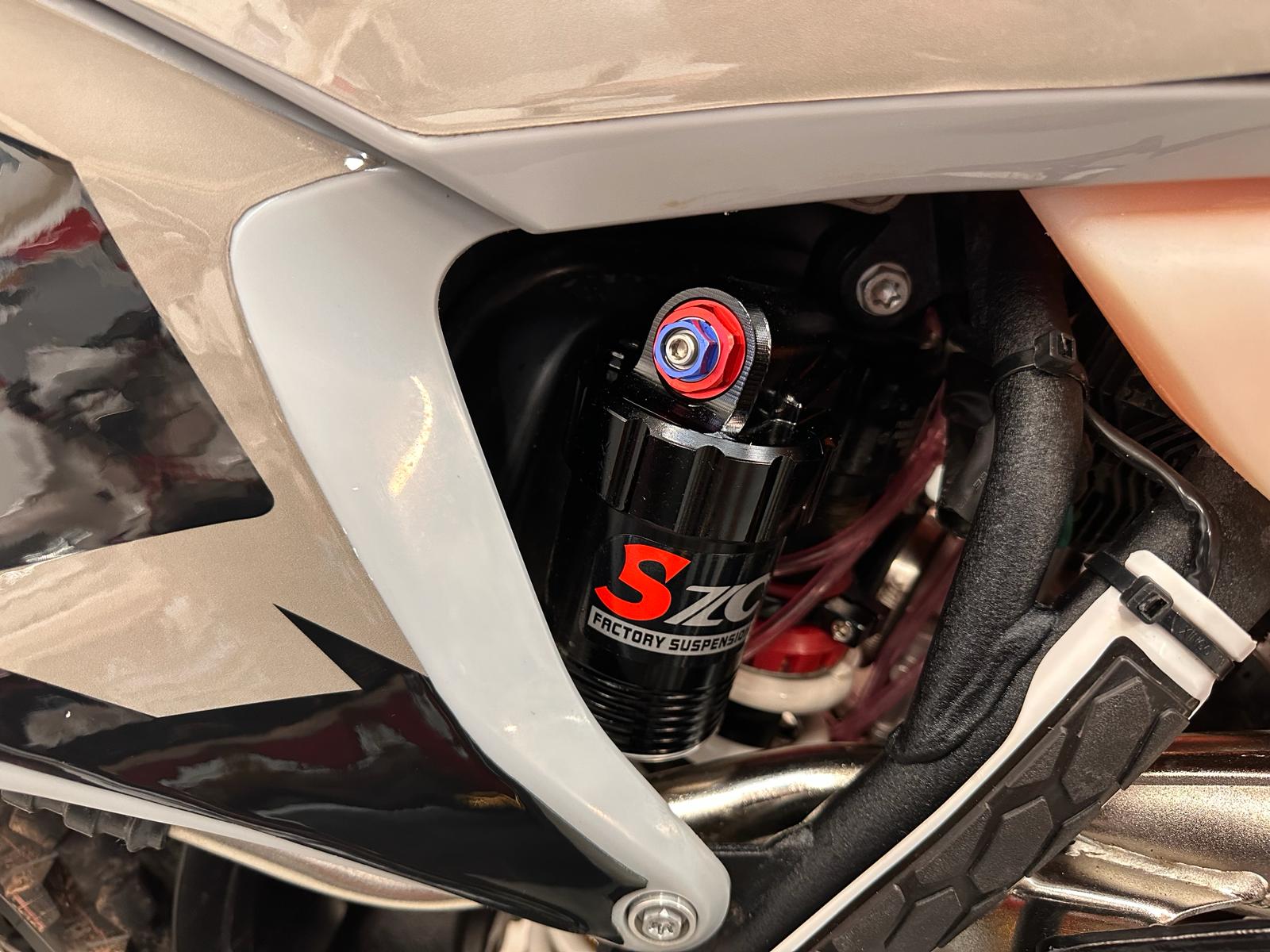

Rear suspension 11.81 inch travel. Quality high performance unit with spring preload, adjustable compression as well as rebound damping
​

WHEELS AND TIRE

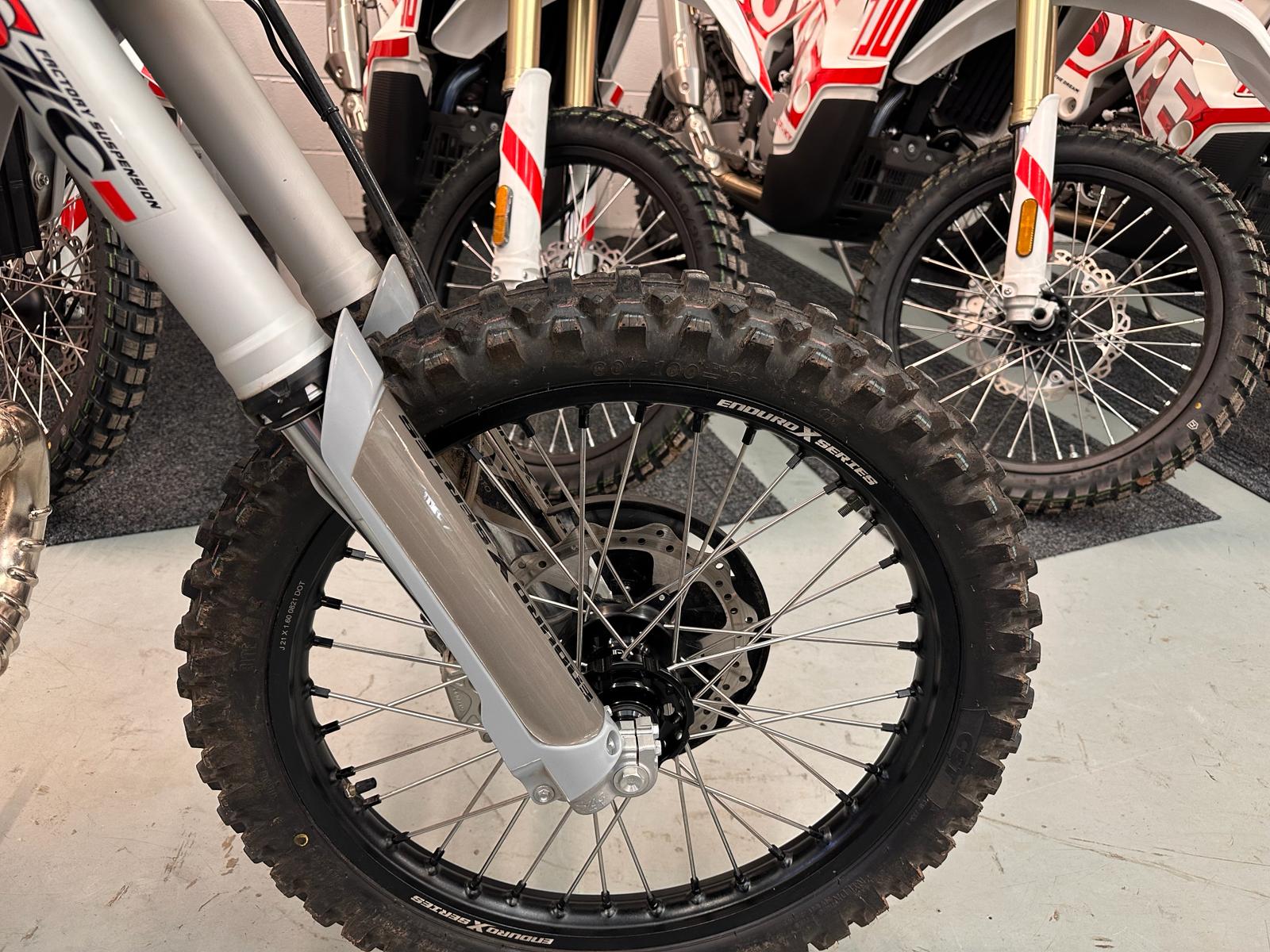

21″ Front wheel comprising of alloy rim and hub. Rim will accept all enduro / mx / trials tyres.

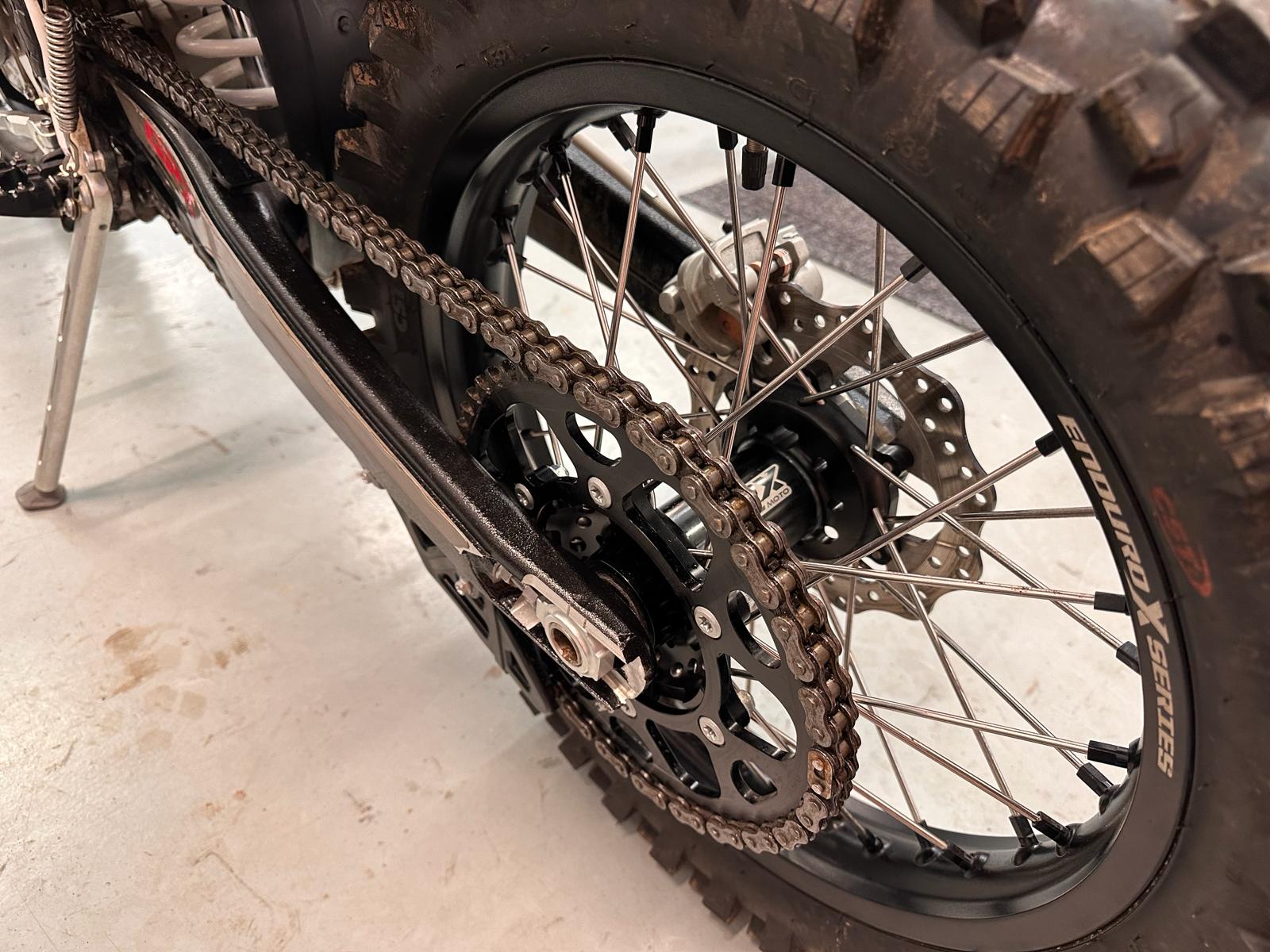

18″ alloy rear wheel with 100/90×18 rear tyre fitted . Rim will accept the normal 140 width tyre
BRAKES –

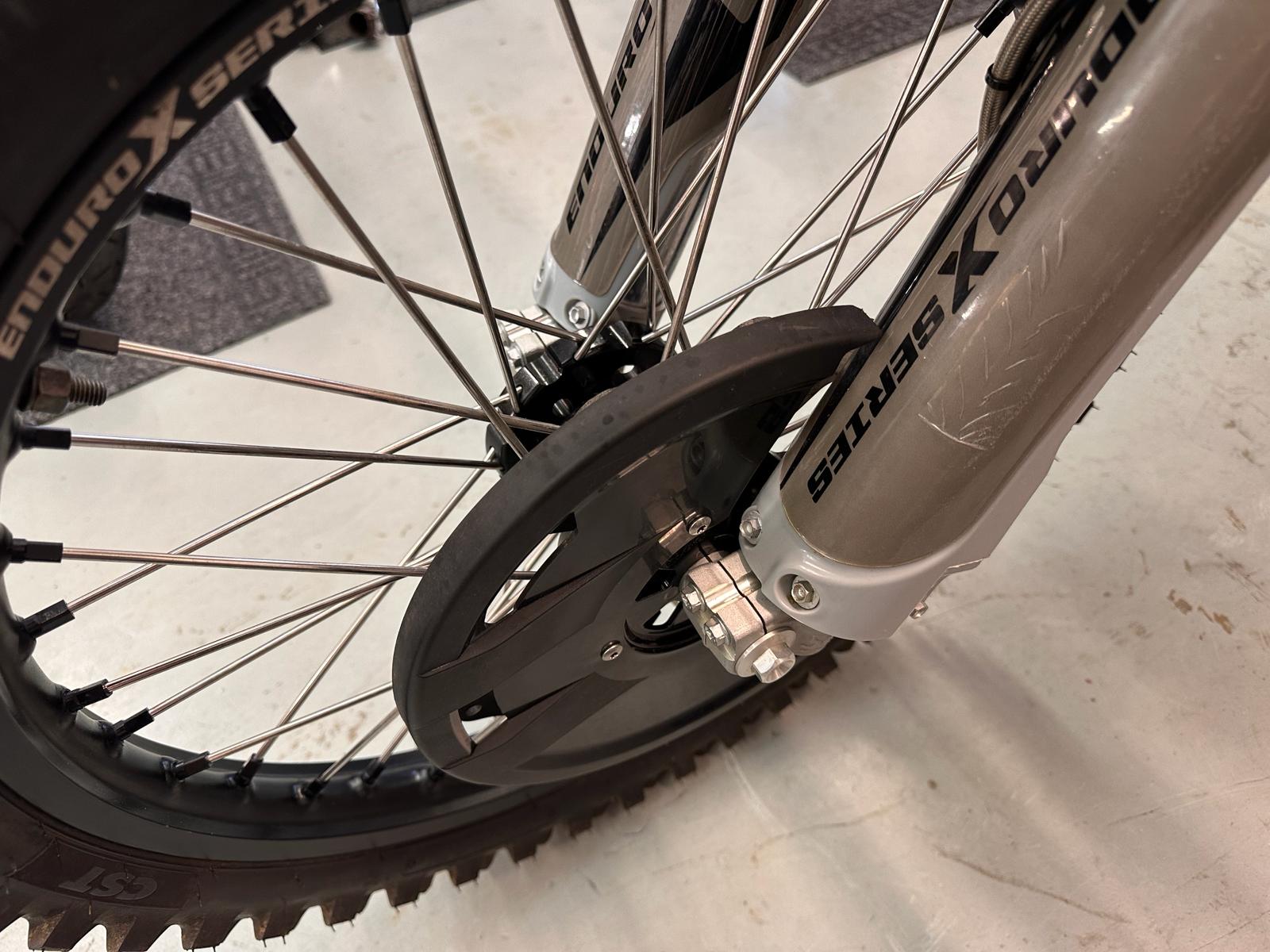

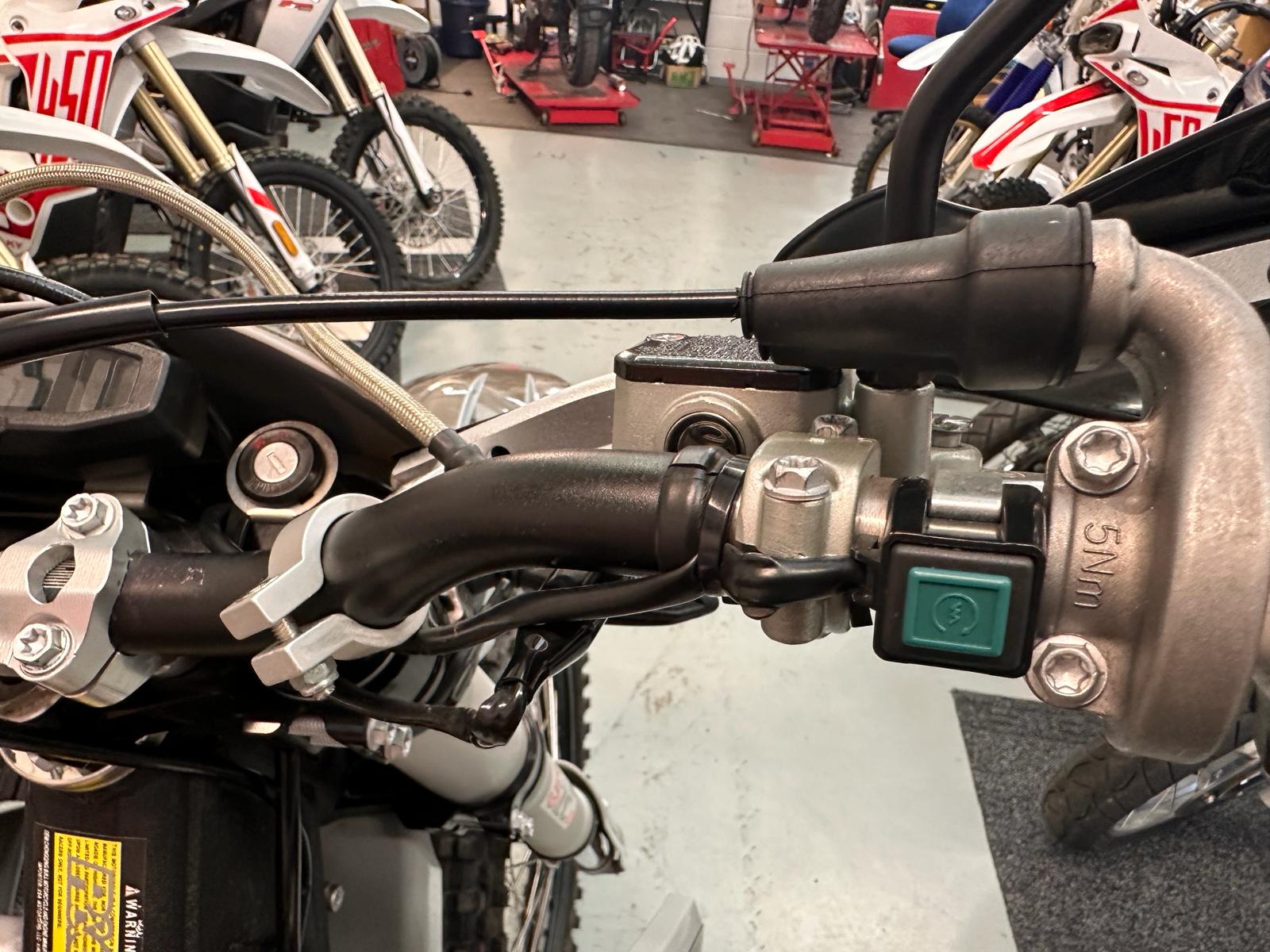

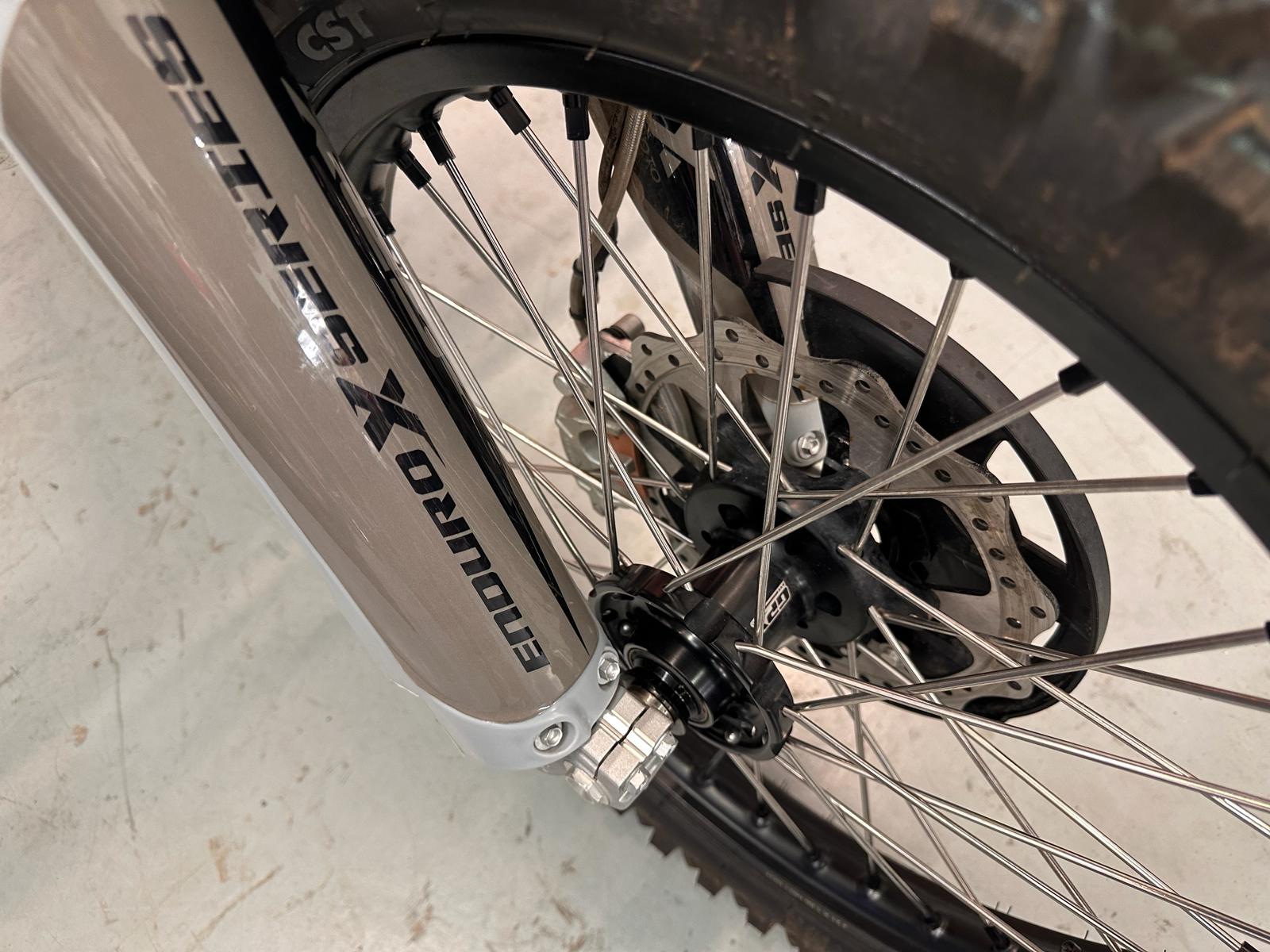

Front Brake – Powerful Hydraulic alloy twin piston caliper with 260mm disc

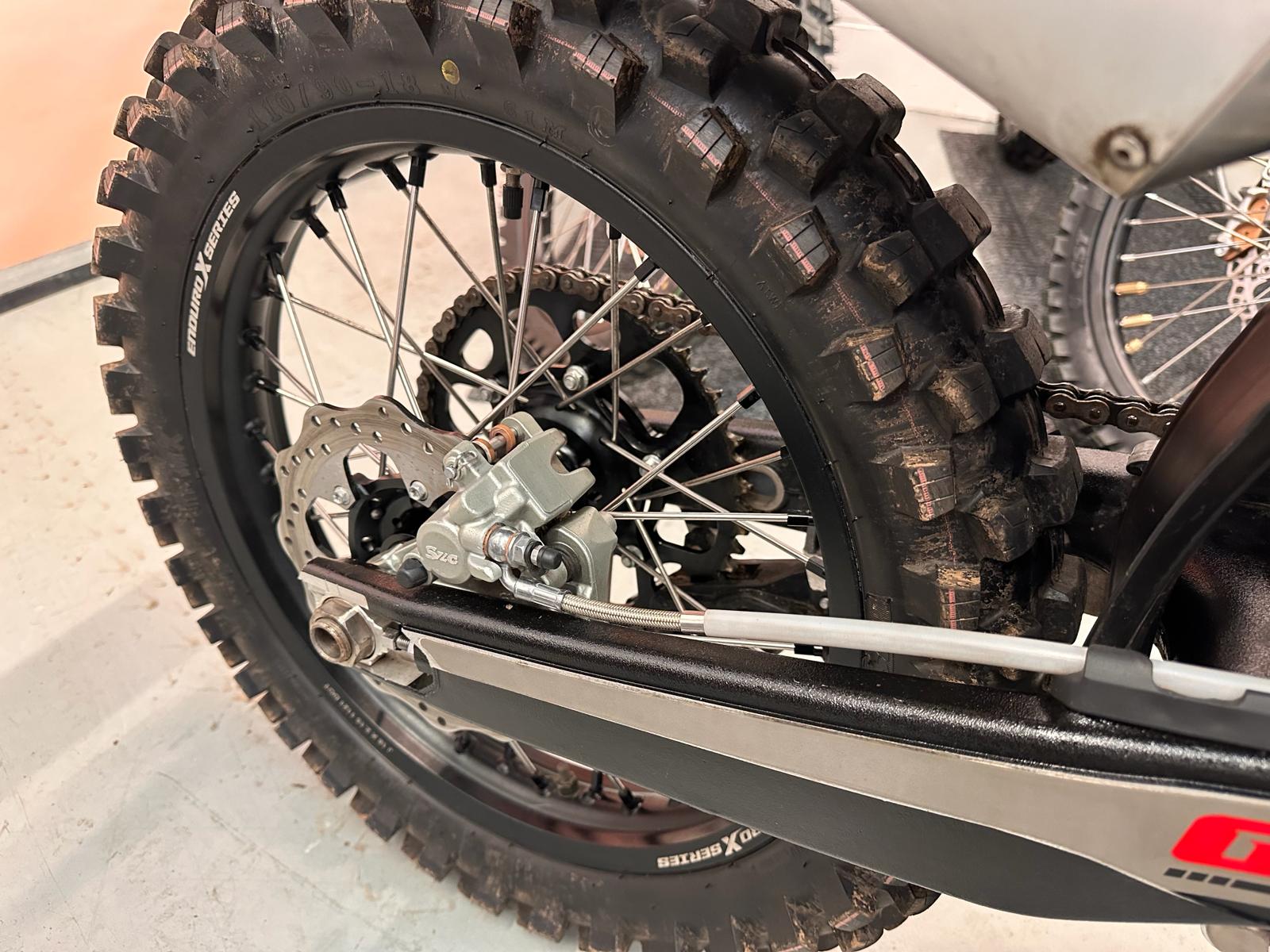

Rear Brake – Powerful Hydraulic alloy twin piston caliper with 240mm disc
​
ADDITIONAL FEATURES

CNC Billet Footpegs as Standard

CNC Billet Triple Clamps as Standard

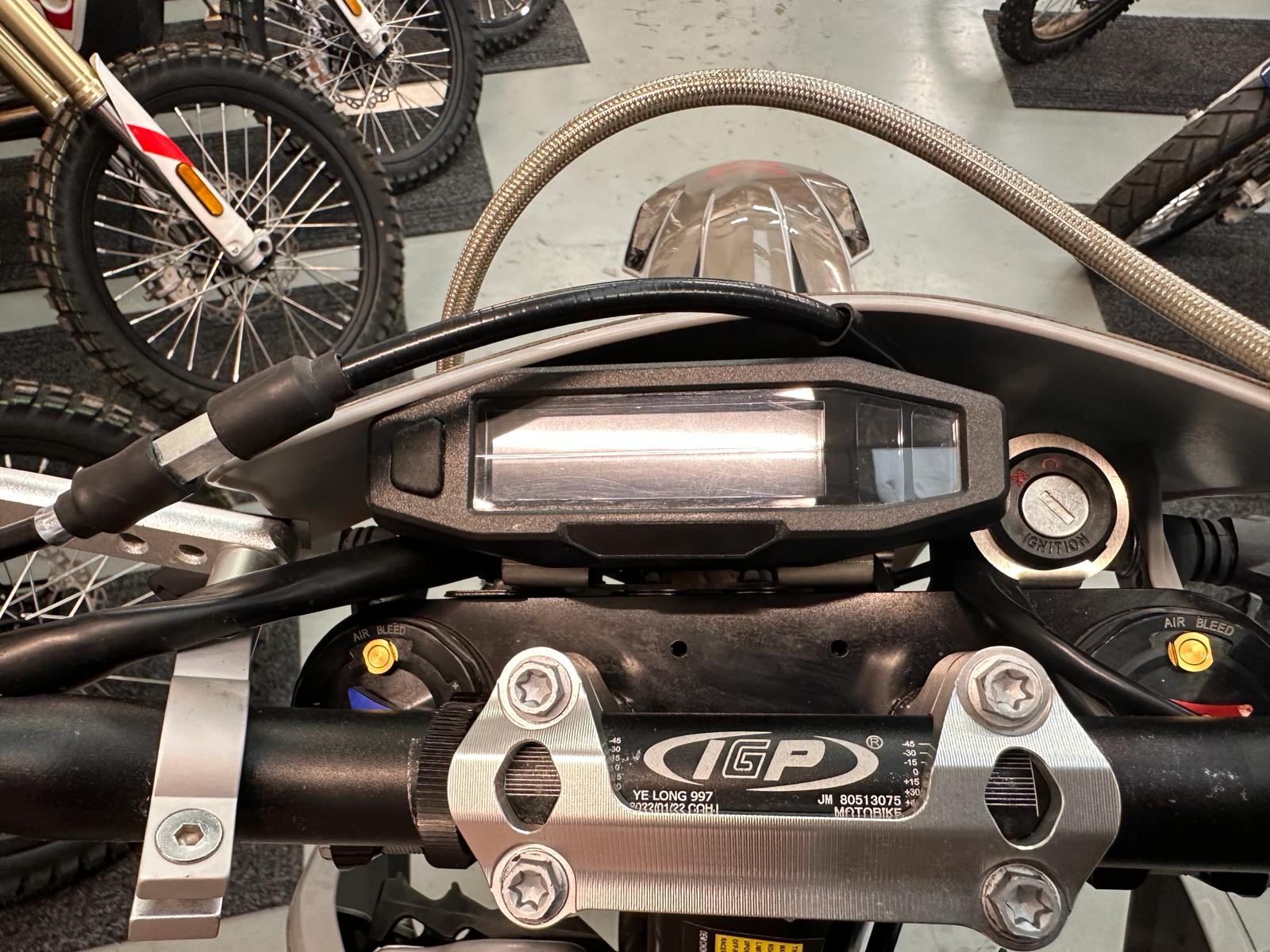

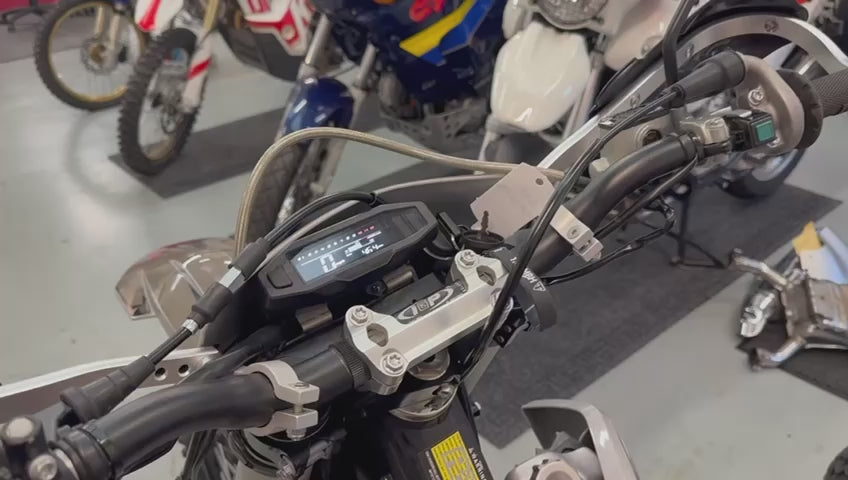

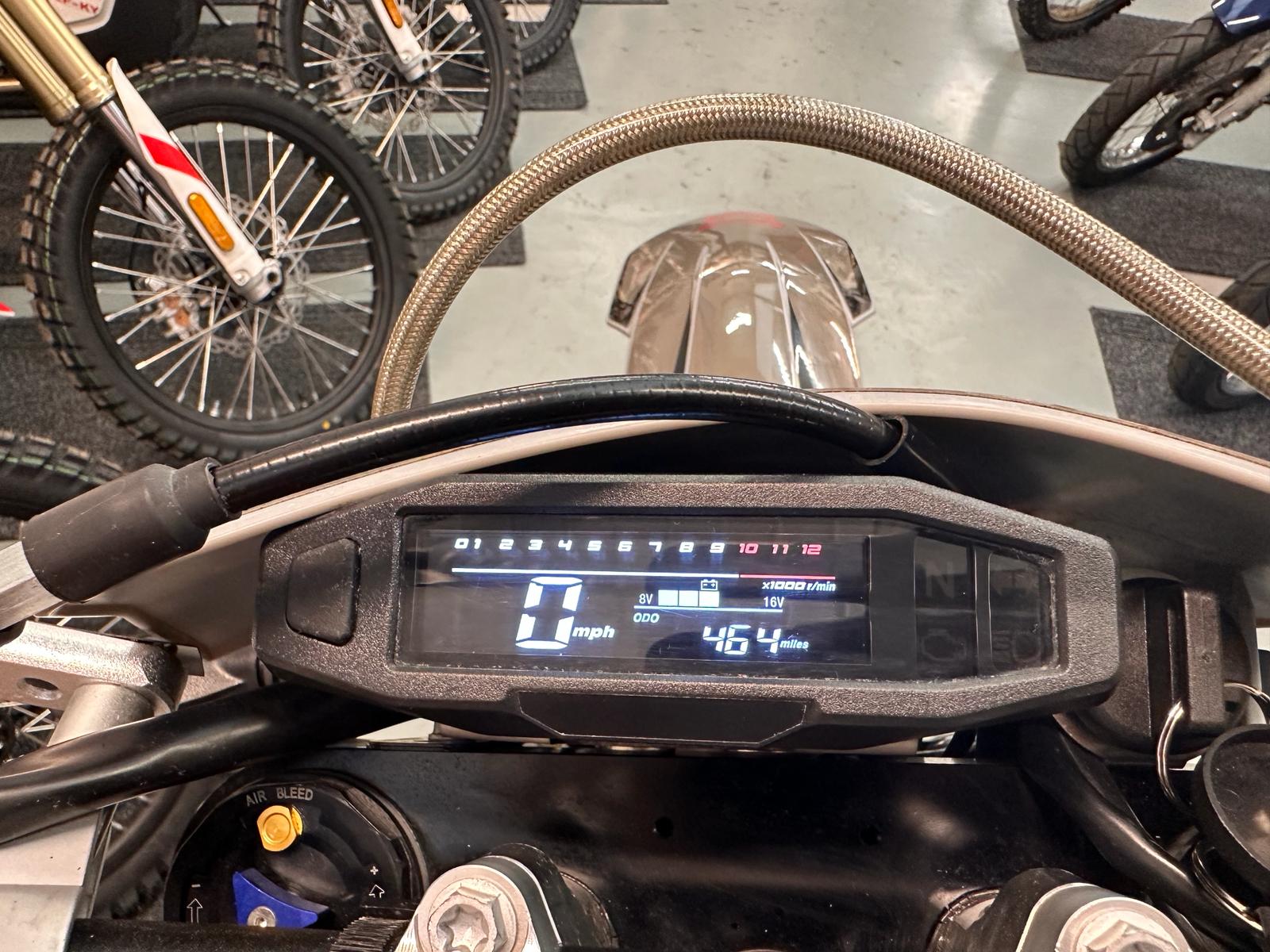

Impressive Digital Speedo W/ Trip /Odometer and key start for security as standard

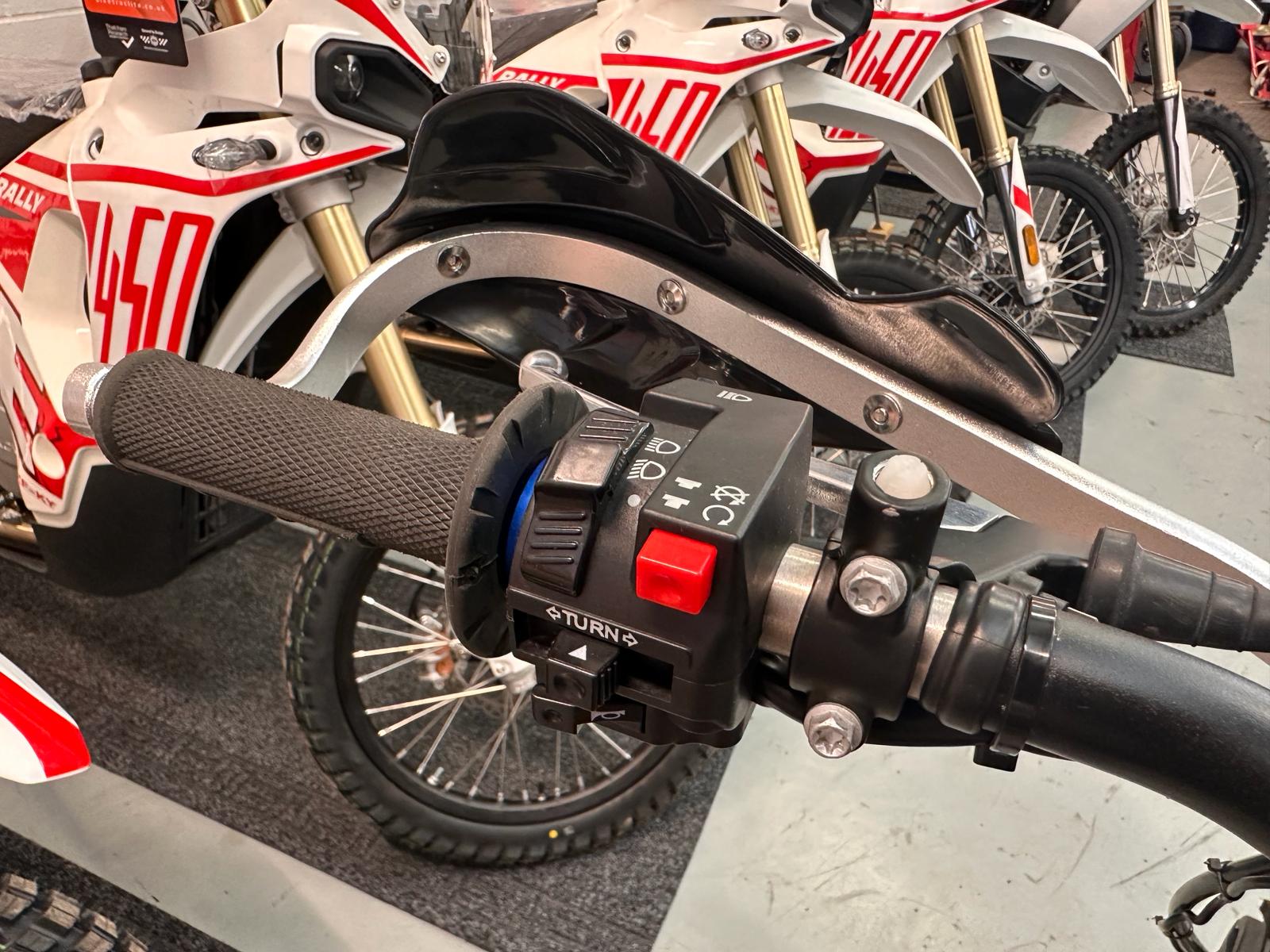

Quality Hand Guards as standard

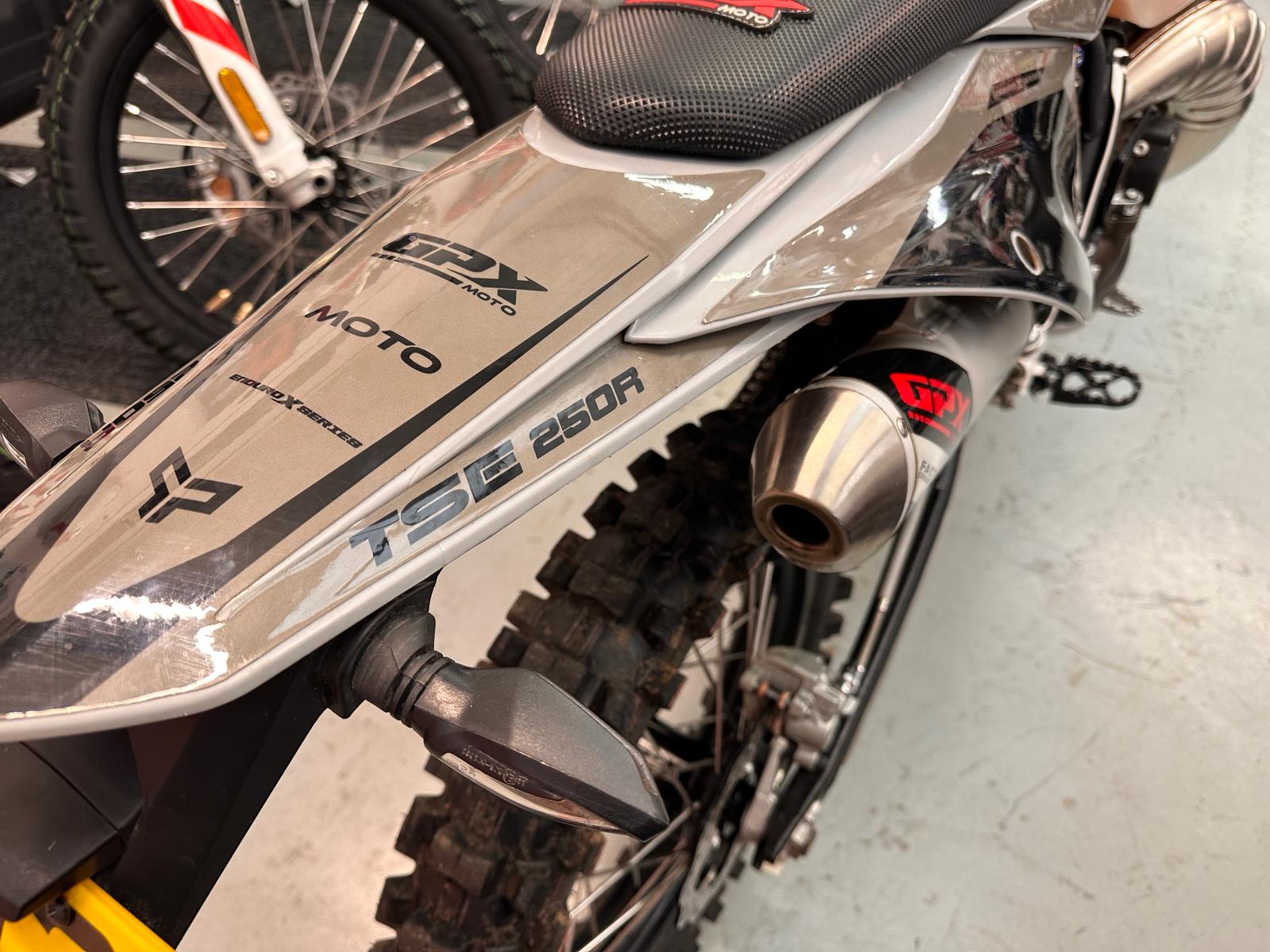

Head Light & Tail Light Standard as well as mirrors and indicators

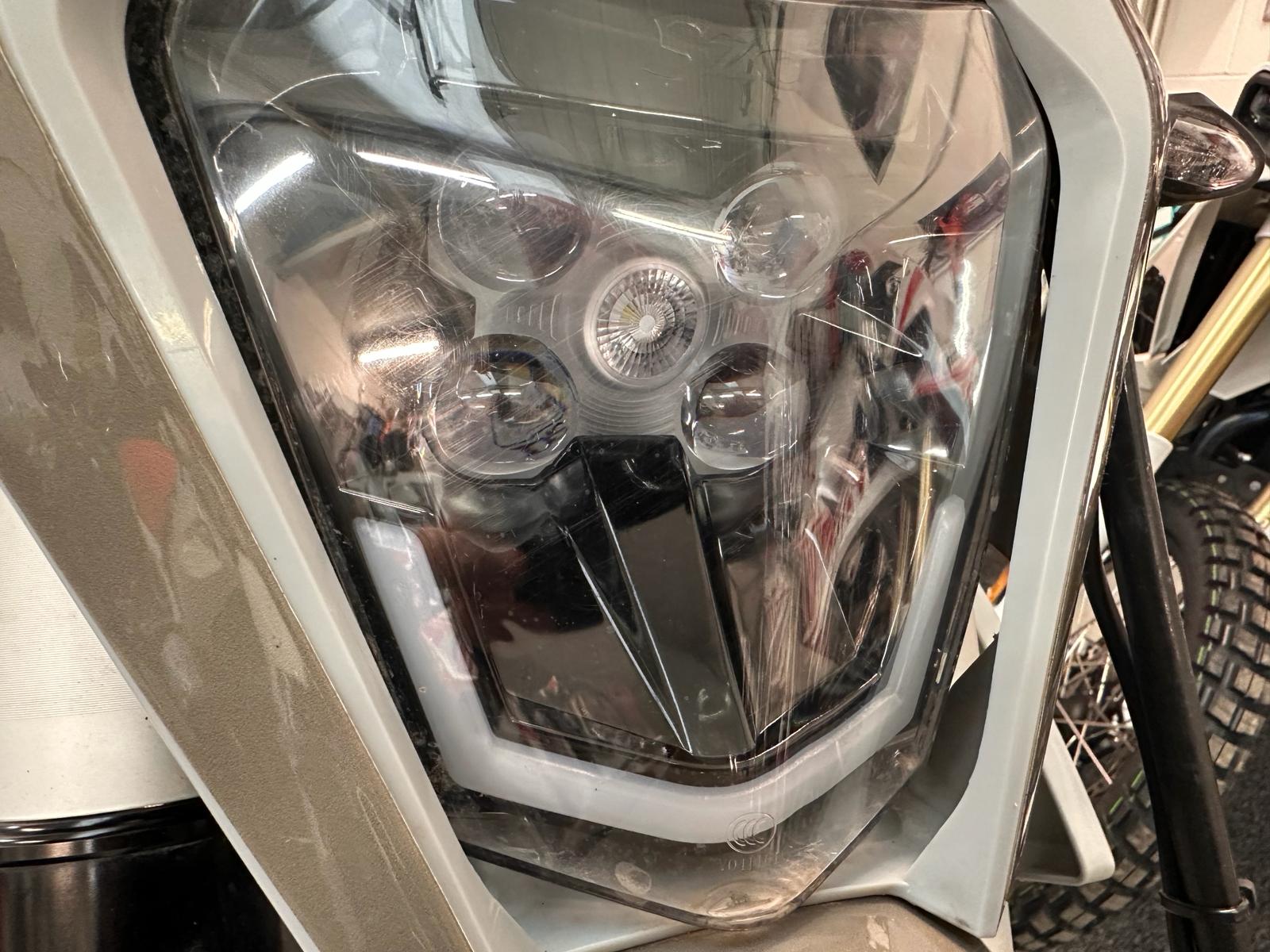

New multi powerful LED headlight for 2022 .

Kick Stand Standard

Plastic sump guard with linkage guard as standard

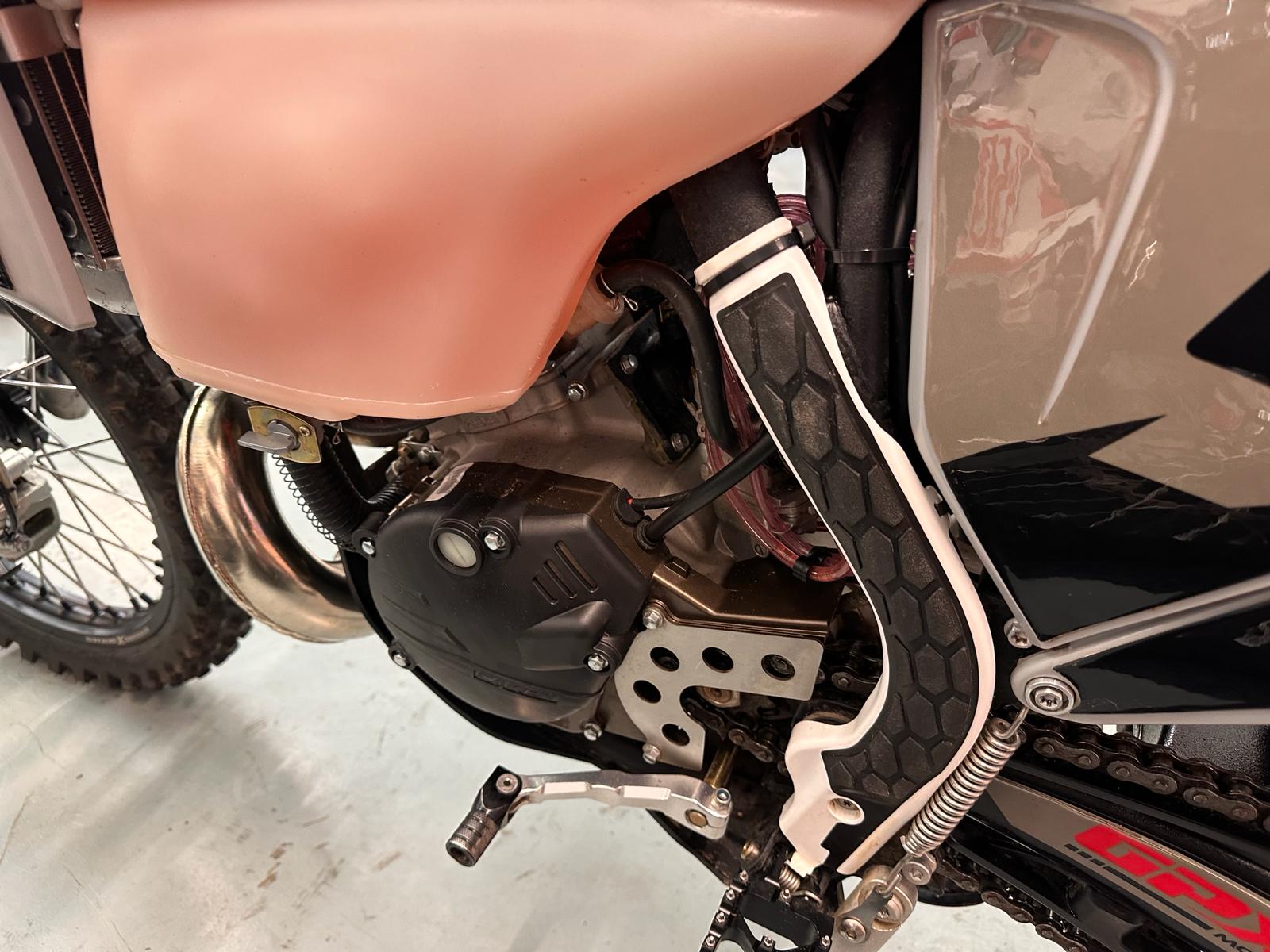

Frame Guards fitted as standard

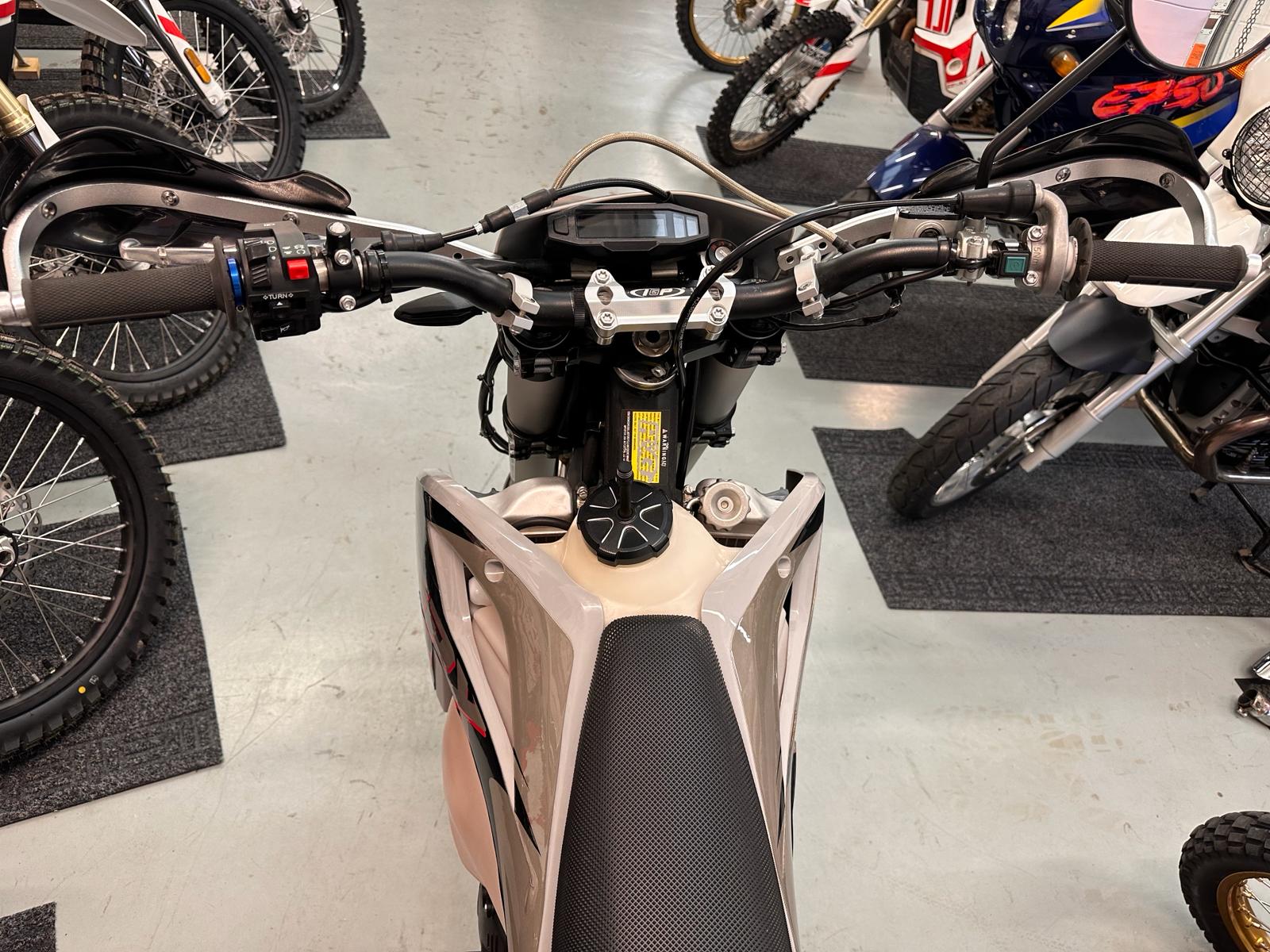

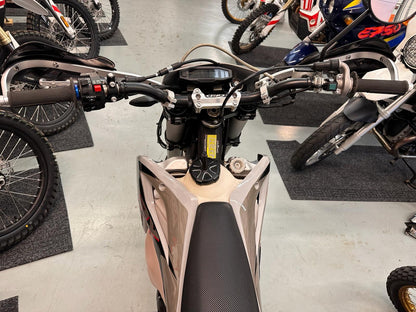

Taper Handle Bars 7061 Standard

Tool Kit as standard
